PWESD-5VDDC ESD 防护器件宣传页

产品概述

Femtofarad bidirectional ElectroStatic Discharge (ESD) protection diode in a leadless ultra small DFN1006 Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients. The combination of extremely low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data line protection and antenna protection applications.

主要特性

· Bidirectional ESD protection of one line

· Femtofarad capacitance: Cj = 0.33pF (Typ)

· Ultra low leakage current: nA Level

· Response time is typically < 1 ns

· IEC 61000-4-2; level 4 (ESD)

典型应用

· USB3.0

· 10/100/1000 Mbit/s Ethernet

· SATA and eSATA

· Communication systems

· High- speed data lines

· Computers and peripherals

· HDMI

· Portable electronics

· Cellular handsets and accessories

· Antenna protection

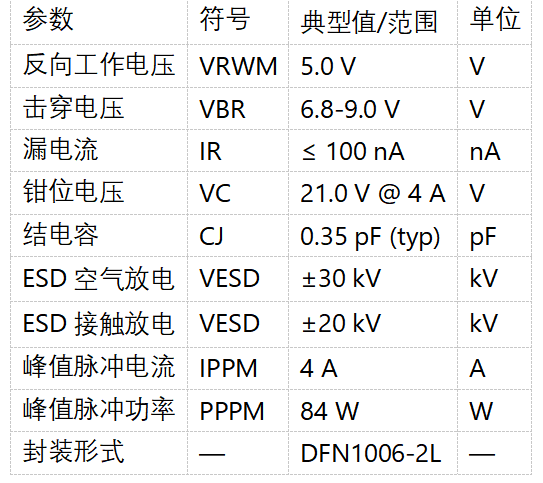

关键参数
