GENERAL DESCRIPTION

PW1555 is a programmable current limit switch with input voltage range selection and output

voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel FET helps to

reduce power loss during the normal operation. Programmable soft-start time controls the slew rate

of the output voltage during the start-up time. Independent enable control allows the complicated

system sequencing control. It integrates the over-temperature protection shutdown and

autorecovery with hystersis.

This IC along with small DFN3X3-10 footprint provides small PCB area application.

FEATURES

⚫ Wide Input Voltage Range from 2.5V to

15V with surge up to 30V

⚫ Extremely Low RDS(ON) for the Integrated

⚫ Protection Switch: 40 mΩ

⚫ Programmable Soft-Start Time

⚫ Programmable Current Limit

⚫ Short-circuit Protection

⚫ Selectable Input Range and Clamping

Output Voltage Threshold.

⚫ Enable Interface Pin

⚫ Thermal Shutdown Protection & Auto

Recovery

⚫ RoHS Compliant and Halogen Free

⚫ Compact package: DFN3X3-10

APPLICATIONS

⚫ Server

⚫ Service PC

⚫ Notebook PC

⚫ pad Mini

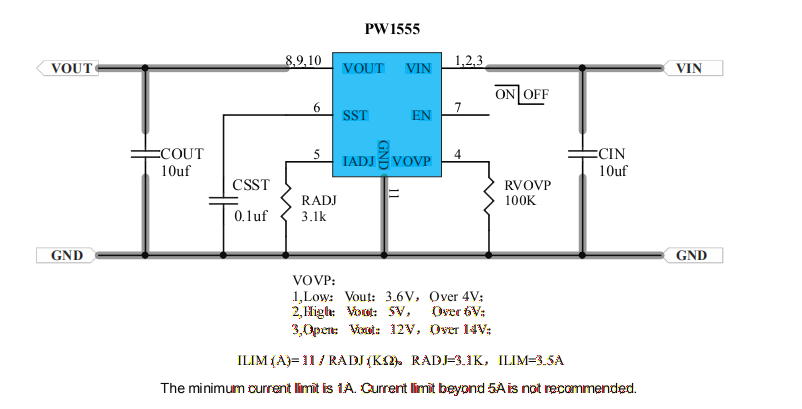

TYPICAL APPLICATION CIRCUIT
