FP6182高质量，要求的5V转3.3V等
详情
|

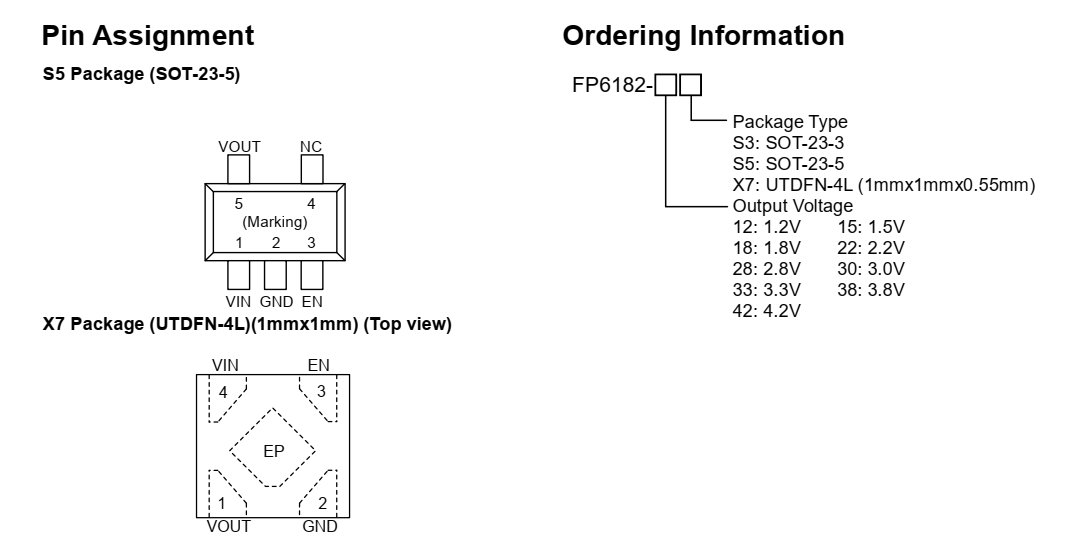

Description The FP6182 is a 150mA low dropout regulator. This product is specifically designed to provide ultra low quiescent current and high output voltage accuracy. The FP6182 integrates many functions. The current limit functions protect the device against current over-loads. It can control other converter for power sequence. The FP6182 can be enabled by other power system. Pulling and holding the EN pin below 0.4V shuts off the output. The FP6182 is available in SOT-23-3, SOT-23-5 and UTDFN-4L (1mmx1mm) packages which features small size. |
|
Features Low I Q , Typ. 1μA No-Load Supply Current Supply Current in Shutdown Mode 0.1μA Input Voltage Range : 2.7V to 5.5V Output Current Limit Protection Dropout Voltage is 250mV @ 150mA Load Max. ± 1.5% Output Voltage Accuracy Output current possible to output 250mA *1 (3.0V OUT product, V IN ≧ V OUT +1V) *1 Stable with Low Cost Ceramic Capacitors Short-Circuit Protection SOT-23-3, SOT23-5 and UTDFN-4L(1mmx1mm)Packages *1 Attention should be paid to the power dissipation of the package when the output current is large. |
|
Applications Smart Watch Wireless Mouse Wireless Sensor Networks Unmanned Aircraft Data Recorder IP Cam Dual Band Working Modes Radio |
