  • 品牌 台湾天钰 FP6606AC
  • 数量
详情
  Description
The FP6606AC is a simplified USB Power Delivery 3.0 protocol controller. It integrated functions for HiSilicon Fast Charging Protocol (FCP) and Qualcomm Quick Charge 2.0/3.0. It also supports USB Type-A and Type-C (1A1C). When 1A1C connector plug into simultaneously, output voltage will down to 5V.
The FP6606AC monitors the CC pin to detect a USB Type-C attach/detach. It is capable providing output voltage of 5V to 20V. The FP6606AC implements VBUS detection and VBUSC discharge for the implementation of compliant  connection ports. The protection features include over-voltage (VBUS, D+/D-, CC1/CC2).

Additionally, the FP6606AC also monitors USB D+/D- data line, connector plug in/out and automatically adjust the output voltage depending on different device requirement. It is capable providing output voltage of 3.6V to 12V.

   Features
● VDD Supply Voltage: 3.2V to 6.8V
● Supports USB Type-C and USB PD 3.0 (simplified)
-- 5V to 20V VBUS Source Only
-- CC1/CC2 Source Terminator 3A
● Supports HiSilicon Fast Charging Protocol (FCP)
● Supports Qualcomm
® Quick ChargeTM 2.0/3.0 Class A
● Automatically Selects FCP and QC2.0/3.0 Protocols
● Supports USB DCP Shorting D+ Line to D- Line per USB Battery Charging Specification, Revision 1.2
● Supports USB DCP Applying 2.7V on D+ Line and 2.7V on D- Line
● USB A Port Plug in Detection
● Multi-Ports Control Application
● Over-Voltage Protection
● VBUS Discharge Function
Short-Circuit Protection
● Over-Current Protection

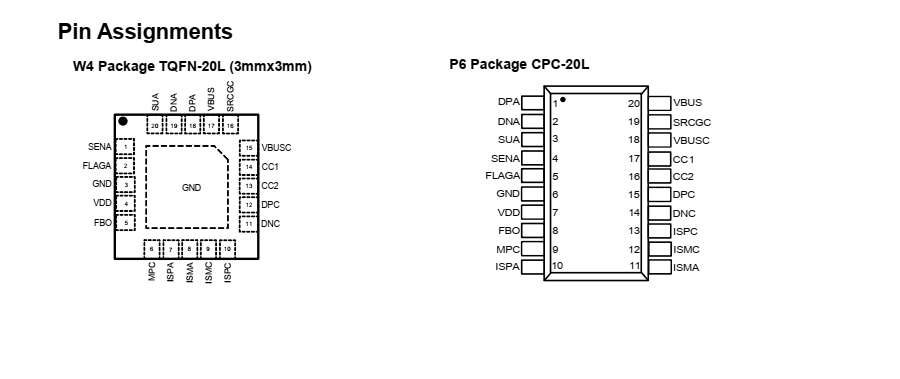

● TQFN-20L (3mmx3mm) and CPC-20L Packages


   Applications
● Wall-Adapter
● Car Charger
● Power Strip
● USB Power Output Ports
